Flush-mounting meter kit with shut-off valves
FLUSH MOUNTING THAT COUNTS
Compact, with optional remote control, install it wherever you want.
- INSTALL IT WHEREVER YOU WANT, because it is compact, and because it meets the technical requirements of recirculation and comfort in full compliance with current standards (UNI EN 806, UNI 9182:2014 and UNI 8065:2019).
- IT IS EASY TO INSTALL AND MAINTAIN, because it is pre-assembled in the box and has the fast, safe and flexible Fastec® connection system.
- IT IS BEAUTIFUL AND ACCESSIBLE, thanks to the flush-to-wall faceplate design.
- It can also be REMOTELY CONTROLLEDwith the addition of the E100 Series motor for opening and closing integrated into home automation systems.
Product range
Flush-mounting metering kit with single volumetric meter
Flush-mounting metering kit with joint
Flush-mounting metering kit with two volumetric meters
Flush-mounting metering kit with joints
INSTALL IT WHEREVER YOU WANT
Metering of post-recirculation domestic hot water
(To meet the requirements of uni 9182/2014)
STANDARD SOLUTION
THE SOLUTION BY TECO
HOT/COLD WATER METERING INSIDE THE FLAT
OLD INSTALLATIONS
THE SOLUTION BY TECO
COMFORT, DESIGN
AND CONVENIENCE
Thanks to its compact size, accessibility and elegant finish, the K4CC metering kit is the ideal accessory for installing the meter anywhere in the home, especially during renovation.
COMPACT
FLUSH-MOUNTING
SMALL DIMENSIONS
The K4CC metering kit (also in the version with E104 motor) is supplied
pre-assembled in a box and can be installed in any type of wall.
* With the wireless module, the
depth becomes 100 mm
Compact size for safe, convenient and effective installation even in small spaces.
Duplex Version
If necessary, two K4CC metering kits can be connected quickly and easily.
The LINK accessory ensures precise alignment of the water meter modules.
PREPARE TODAY
MANUAL VERSION
CHOOSE TOMORROW
VERSION WITH E100 SERIES ELECTRIC ACTUATOR

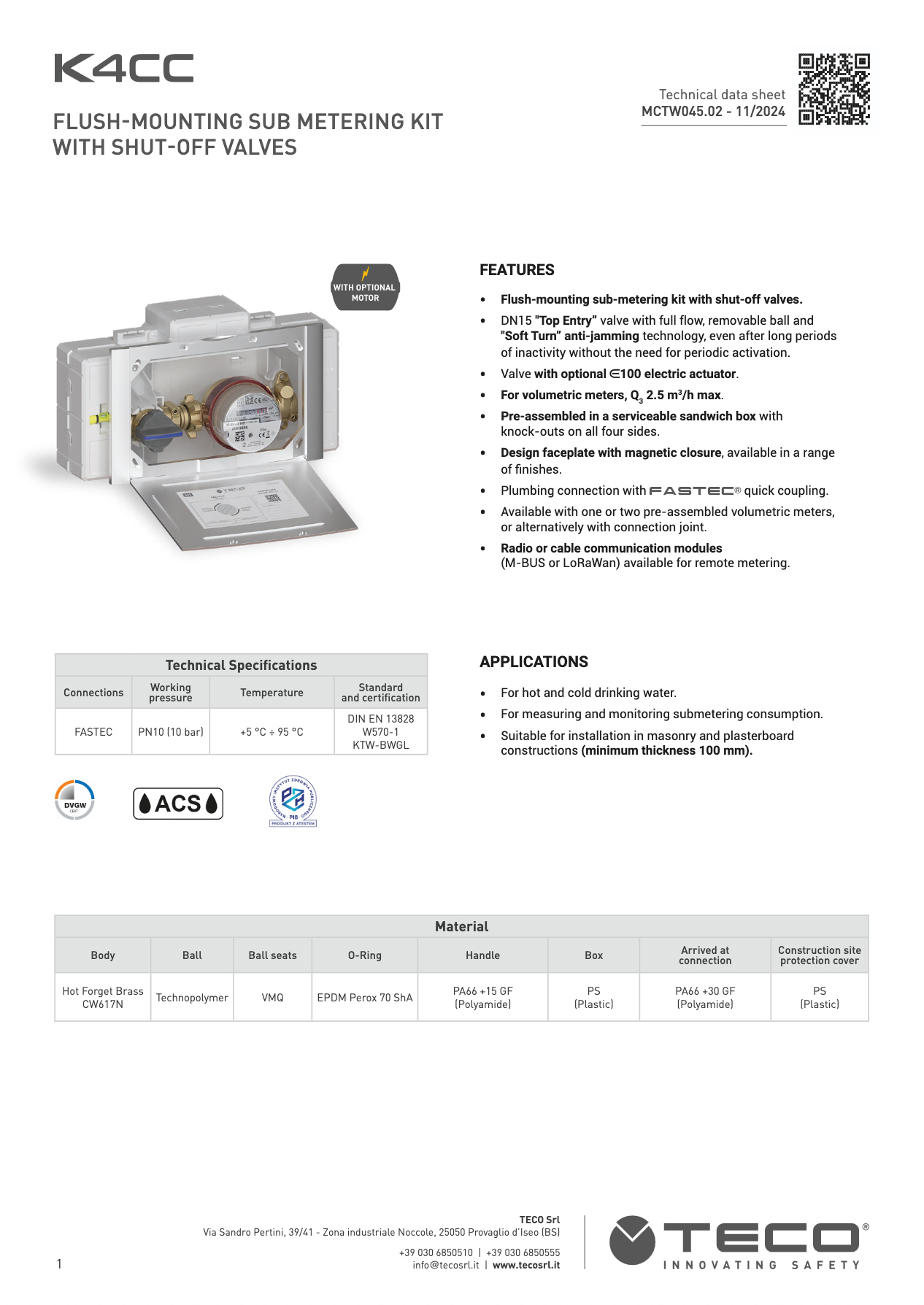

Technical data
APPLICATIONS
- For hot and cold drinking water.
- For measuring and monitoring submetering consumption.
- Suitable for installation in masonry and plasterboard constructions (minimum thickness 100 mm).
| Technical data | |
|---|---|
| Standard and certification | DIN EN 13828 W570-1 KTW-BWGL ACS PZH |
| Pressure | PN 10 (10 bar) |
| Working temperature | +65 °C + (90 °C x60’) |
| Fittings | FASTEC® |
 Patented | |
FEATURES
- Flush-mounting metering kit with shut-off valves.
- DN15 "Top Entry" valve with full flow, removable ball and "Soft Turn" anti-jamming technology, even after long periods of inactivity without the need for periodic activation.
- Valve with optional E100 electric actuator.
- For volumetric meters, Q3 2.5 m3/h max.
- Pre-assembled in a serviceable sandwich box with knock-outs on all four sides.
- Design faceplate with magnetic closure, available in a range of finishes.
- Plumbing connection with FASTEC® quick coupling.
- Available with one or two pre-assembled volumetric meters, or alternatively with connection joint.
- Radio or cable communication modules (M-BUS or LoRaWan) available for remote metering.
Discover more
Documentation
Teco offers its product libraries developed on the Autodesk Revit platform, ensuring data compliant with BIM standards.
BIM Catalogue
