The fast and secure plumbing connection
SIMPLIFIES
DIFFICULT INSTALLATIONS
A range of solutions for renovations, repairs and new installations with diffi cult or unforeseen connections.
FEATURES
- Quick and safe connection without tools.
- Unbeatable in tight spaces.
- Sealing ensured by O-ring with static (controlled) predefined compression.
- Reliability certified by millions of fittings installed worldwide, both visible and concealed.
- Wide range of fittings, adapters and valves to suit many system solutions.
- Rotatable.
- Non-removable fixing pin.
Simple and secure connection
Inserting the fitting. The fixing pin integral with the valve or fitting body makes connection extremely easy and convenient.
When the pin is lowered, a CLICK confirms that the connection has been made correctly The pin can only be lowered if the fitting has been inserted correctly. With the system in operation (pressurised), the pin can no longer be pulled out.
Unbeatable in tight spaces
Fastec fittings can rotate 360° during installation. This helps when positioning the system, making the Fastec connection unbeatable in tight spaces. Once the system is in operation and pressurised, the fittings can no longer rotate.
O-Ring dimensioned for a perfect seal
The perfectly dimensioned O-Ring ensures a perfect seal for the entire service life of the system. The entire Fastec range is tested in accordance with ISO 11346 which simulates the equivalent of 50 years of system operation.
Practical and versatile solution
Fastec offers a practical and versatile solution to meet a range of installation requirements. Thanks to the available fittings in the range, pipes of different diameters and materials can be connected easily and efficiently without using tools.
Product range | FASTEC® STORE
Thanks to the available fittings, pipes with different diameters and made of different materials can be connected easily and efficiently.
90°
Female
90°
Male
Female “T”
Male “T”
Female Nipple
Male Nipple
Twin
Female Plug
Male Plug
Reducer
Telescopic Joint EXTENDER
Fitting Male Thread
Fitting Female Thread
Eurokonus threaded connection
90° connection Male Thread
90° connection Female Thread
Swivel Nut
RANGE OF ORIGINAL FITTINGS FROM DOMESTIC WATER SYSTEM MANUFACTURERS
The Fastec connection can be used with the main multilayer or PEX pipe systems on the market, thanks to the availability of numerous original fi ttings from manufacturers.
EXPANSION RING
AXIAL CRIMP
RADIAL CRIMP
EXTENDER application example
MCC0230 * Ready-to-use case
* Contents of the ready-to-use case
N° 2 Adapters 90°
F13 F-F
N° 2 T-adapters
F13 F-F-F
N° 3 Threaded fittings
F13 M x R 1/2"
N° 2 T-adapters
F13 F-F-F
N° 1 T-adapters
F13 M-F-F
N° 3 Nipples
F13 M-M
N° 2 Plugs
F13 M
N° 3 Eurokonus Fittings
F13 M x EK 3/4"
Product range with Fastec connection
Technical data
APPLICATIONS
- For hot and cold drinking water.
- For cooling and heating water with or without antifreeze.
- For external and concealed installations.
| Technical data | |
|---|---|
| Standard and certification | KTW-BWGL ACS PZH |
| Working pressure | Max. operating pressure of the connection: 16 bar |
| Temperature | +5 °C ÷ +95 °C |
 Patented  | |
FEATURES
- Quick and safe connection without tools.
- Unbeatable in tight spaces.
- Sealing ensured by O-ring with static (controlled) predefined compression.
- Reliability certified by millions of fittings installed worldwide, both visible and concealed.
- Wide range of fittings, adapters and valves to suit many system solutions.
- Rotatable.
- Non-removable fixing pin.

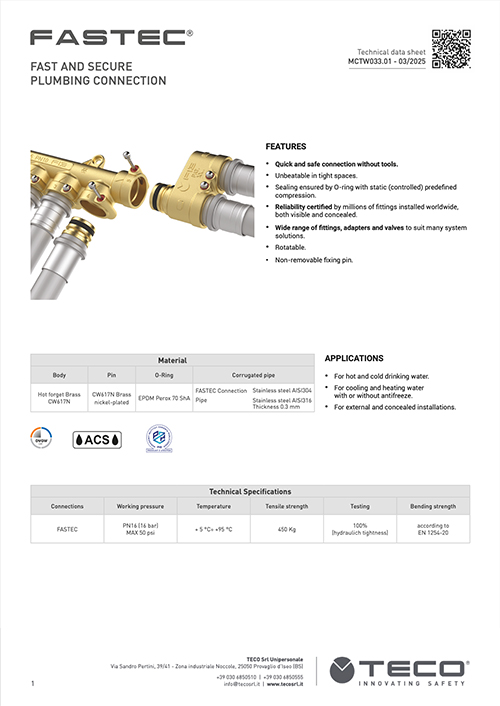

Documentation
Teco offers its product libraries developed on the Autodesk Revit platform, ensuring data compliant with BIM standards.
BIM Catalogue
